Product Overview

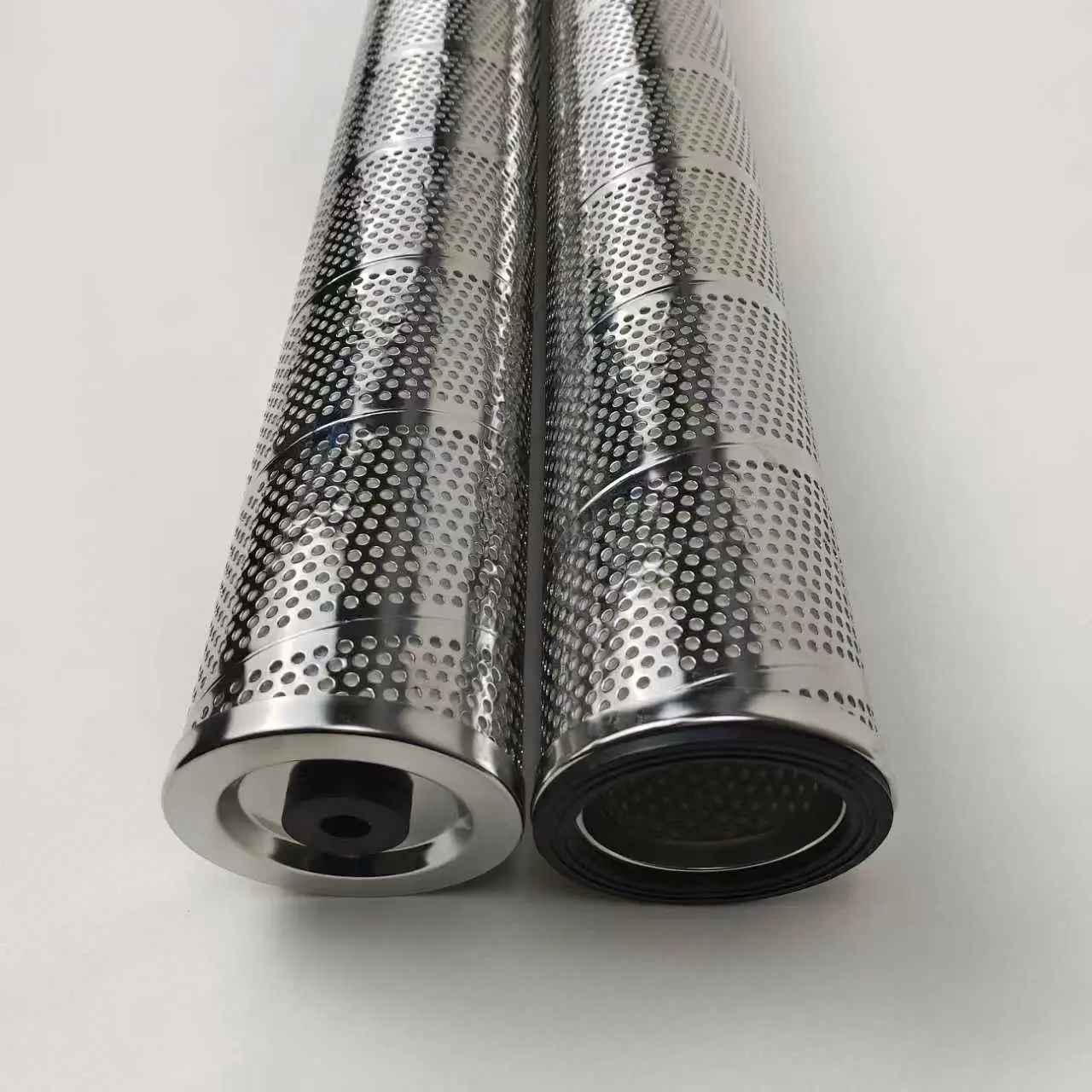

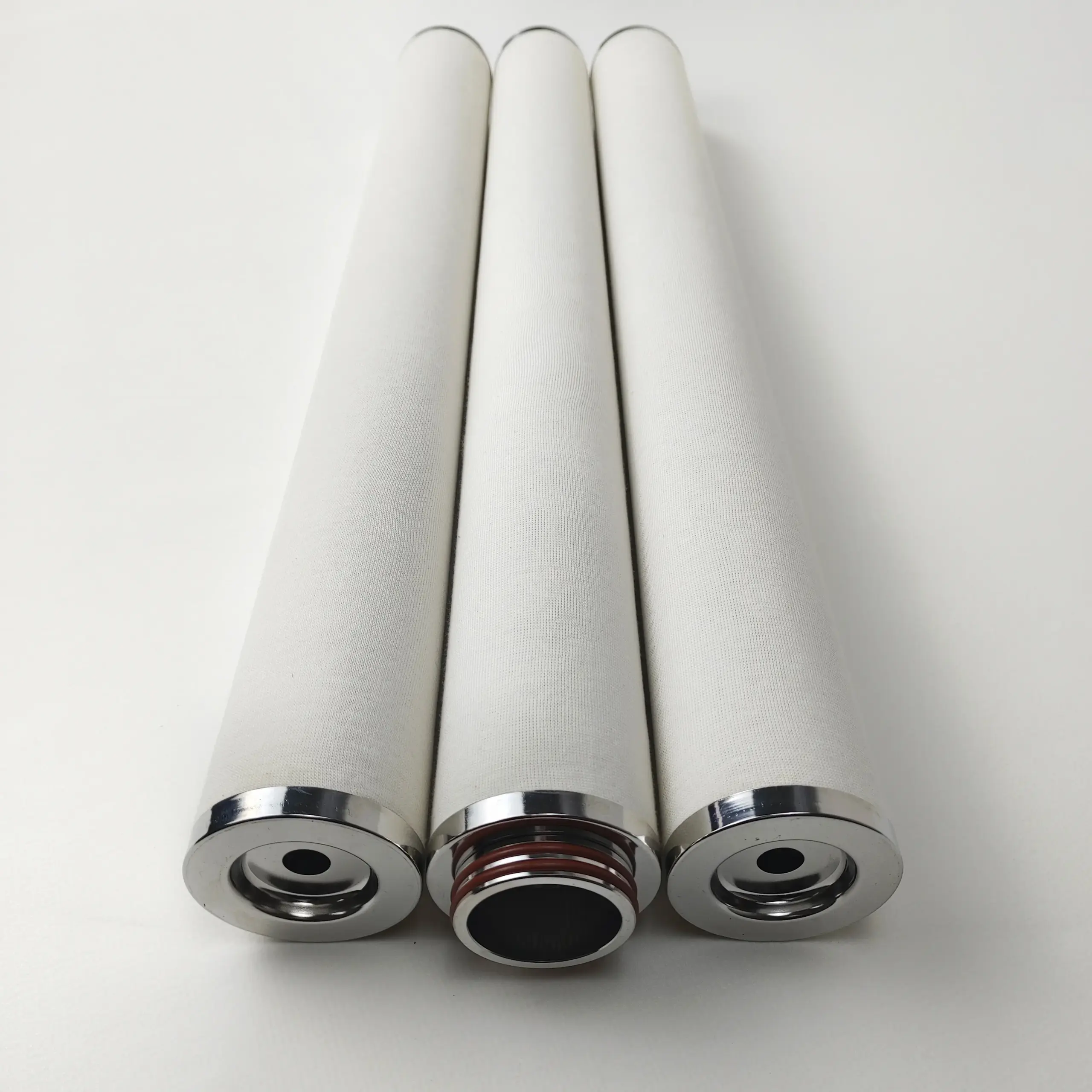

Petroleum & Petrochemical Liquid Filter Cartridges are designed for the efficient removal of particles, contaminants and impurities from various process liquids in petroleum refining and petrochemical industries.
Manufactured with high-quality filter media and durable support materials, these filter cartridges provide reliable filtration performance, high dirt-holding capacity and excellent chemical resistance in demanding industrial environments.
Product characteristics
The support frame is made of thickened material to prevent deformation under low pressure differential.
It adopts a multi-layered progressive aperture structure, with coarser outer pores and finer inner pores, to increase the dirt-holding capacity;
Effectively solves short-term clogging of the filter element surface and extends the service life of the filter element.
Technical Specification
| Filter Element | |
| Filter Material | Fiberglass, PP, stainless steel, etc. |
| Center Core Material | Stainless Steel 304L 316L |
| Filtration Accuracy | 1 μm, 5 μm, 10 μm, 20 μm, 30 μm, 50 μm, |
Application Area
Crude oil and refined oil filtration
Petrochemical process filtration
Solvent and chemical solution filtration
Polymer solution filtration
Amine and glycol filtration
Lubricating and hydraulic oil filtration
Oilfield injection water filtration
Process and cooling water filtration
