Product Overview

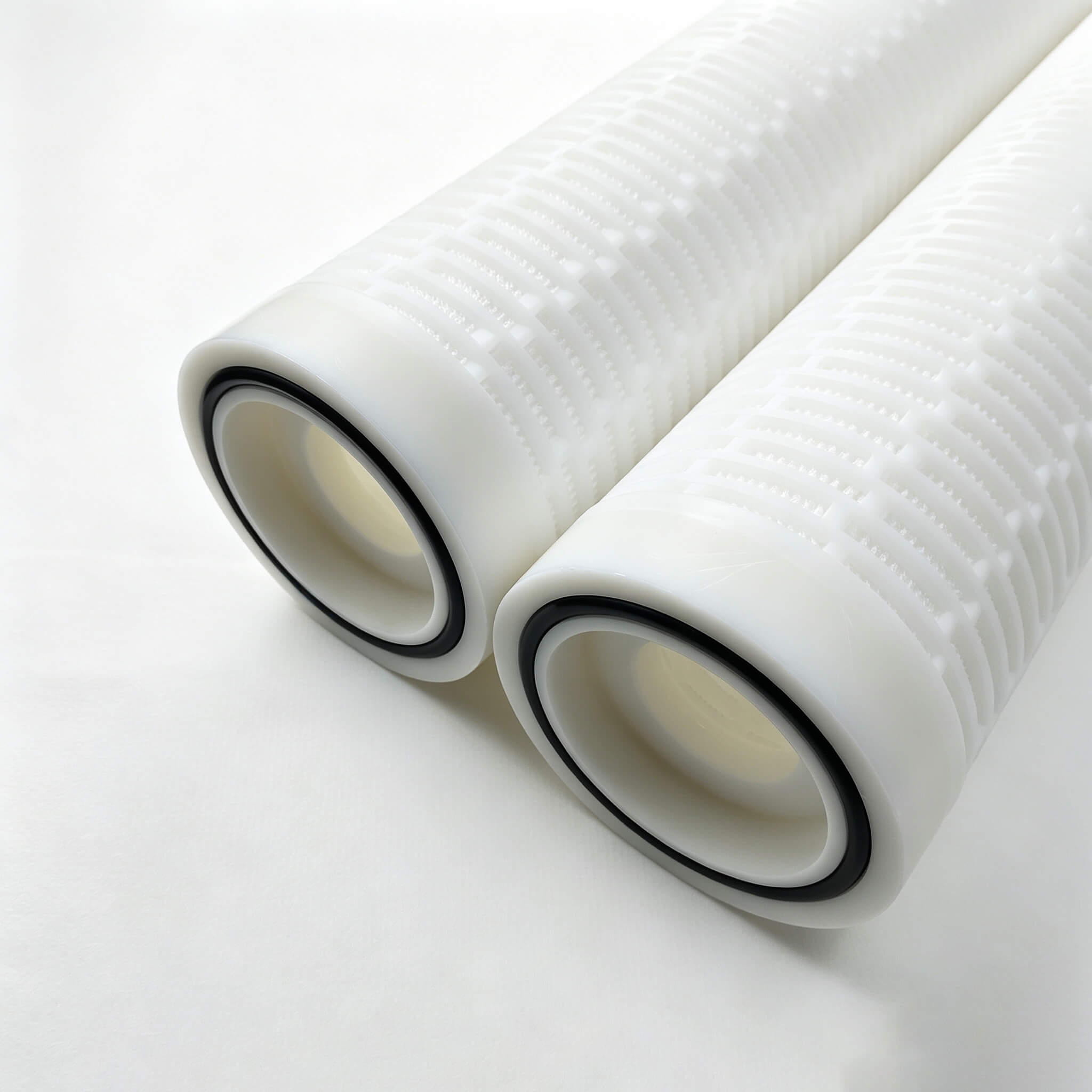

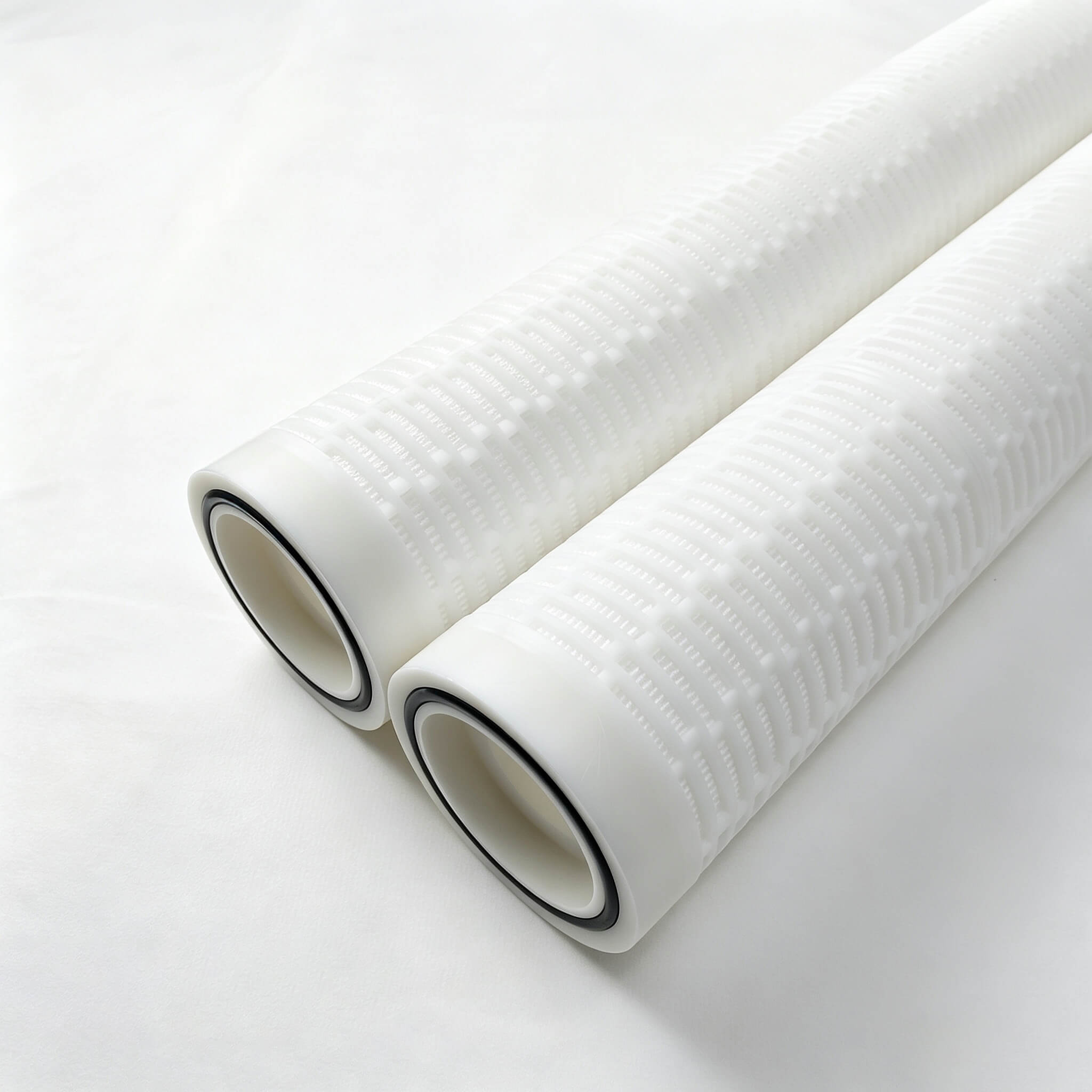

High Flow Filter Cartridge is designed for high-volume liquid filtration applications, offering a large filtration area, high dirt-holding capacity and long service life. It is widely used in industrial water treatment, process water, cooling water, pre-filtration and other demanding filtration systems.
Product characteristics
Large filter element pollution, long service life.
The design of the seal interface reduces the risk of bypass flow and improves the filtration efficiency.
Technical Specification
| Filter Material | Polypropylene (PP), Glass Fiber |
| Support / Guide Layer | Polypropylene (PP) |
| End Cap Material | Glass Fiber Reinforced Polypropylene |
| Seal Ring Material | EPDM (Ethylene Propylene Rubber), Silicone Rubber, Fluorine Rubber (FKM), Nitrile Rubber (NBR) |
| Filtration Accuracy | 1 μm, 5 μm, 10 μm, 20 μm, 40 μm, 70 μm, 100 μm |
| Maximum Operating Temperature | 82°C |
| Maximum Differential Pressure | 3.4 bar @ 82°C |
| Recommended Maximum Flow Rate | 1,300 LPM |
Application Area
Large reverse osmosis pre-processing filtration.
Electronic industry high-pure water front filtration.
Petrochemical industry amine liquid filtration, oil field back to water injection filtration.
Power, coal chemical industry security filtration, seawater desalination pretreatment.
