Product Overview

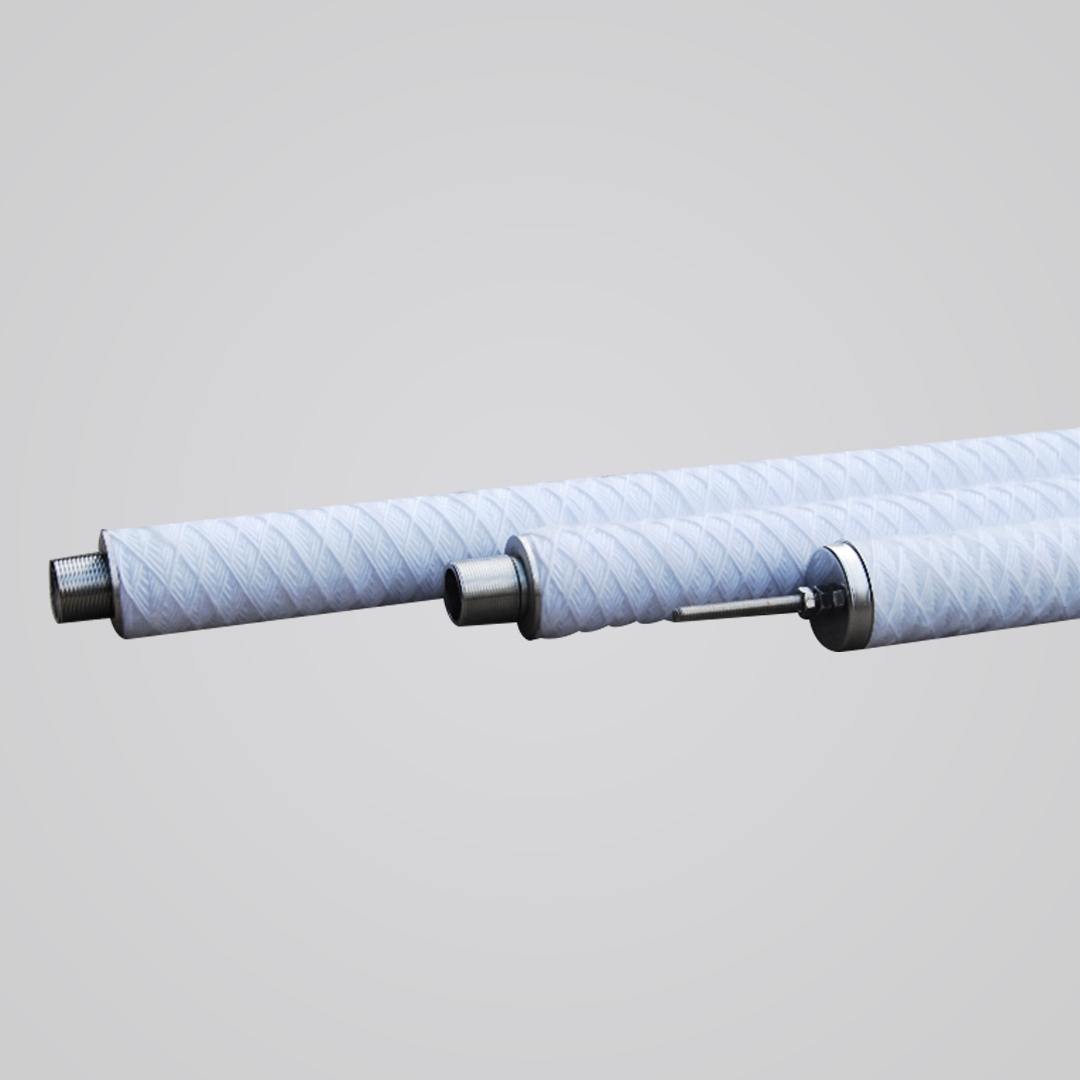

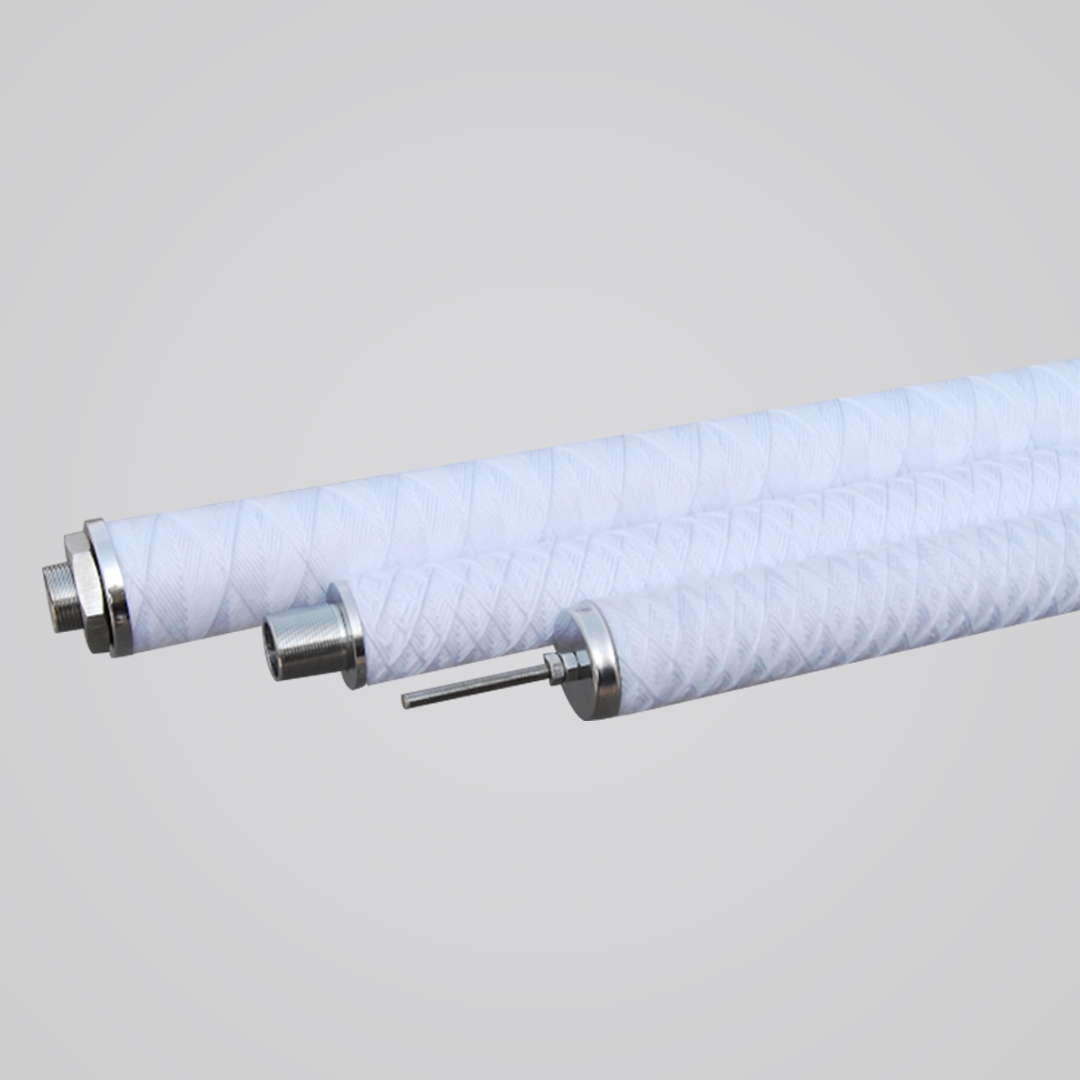

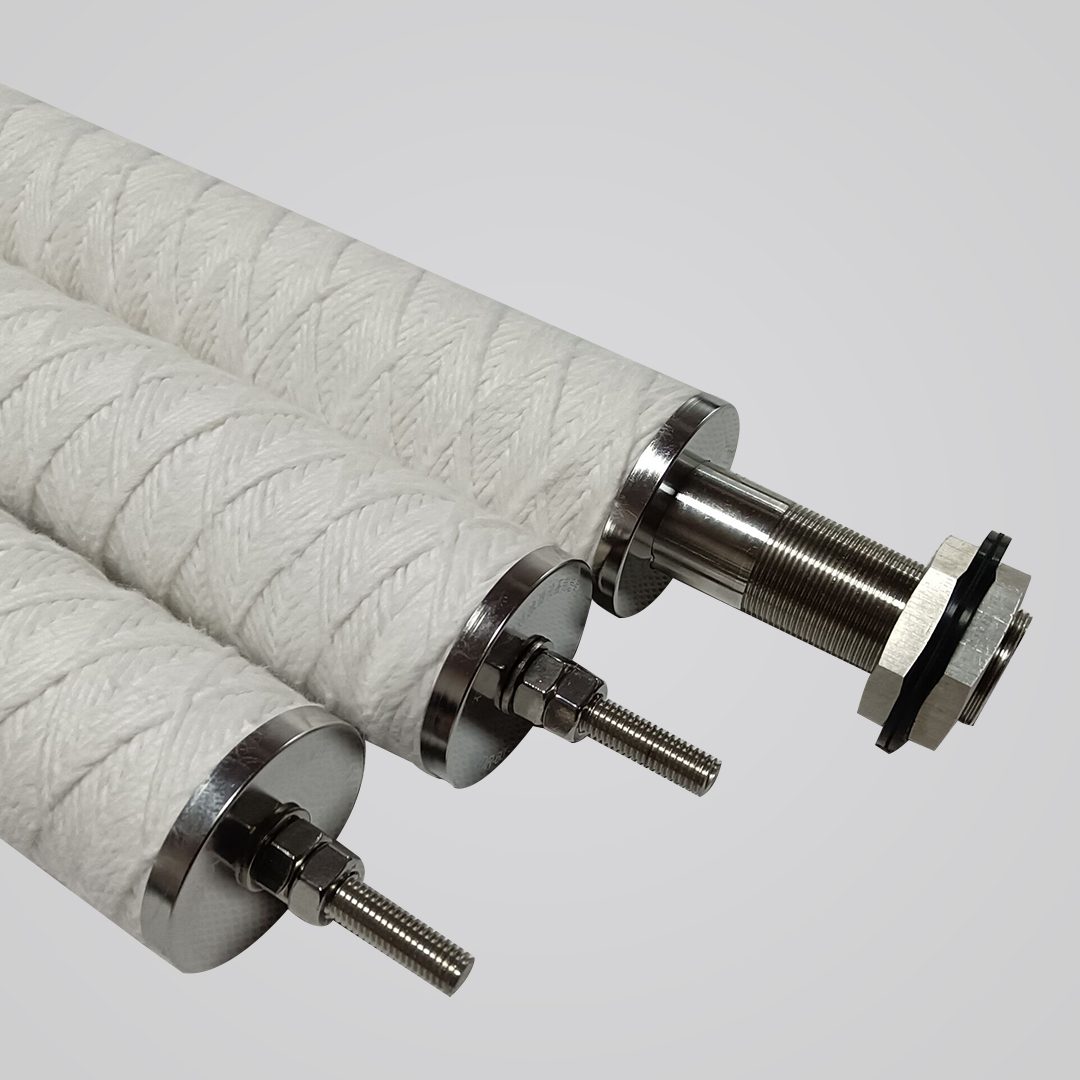

The DY70B power plant condensate line-wound filter element uses continuous high-performance fiber filter media, wound using specialized equipment. The filter element is up to 70″ (1778mm) long, with a central rod reinforced with 304 or 316 stainless steel to ensure the overall shape of the filter element. The high-performance fibers prevent deformation and fiber shedding, allowing for installation in existing equipment. External threads and stainless steel threaded rod connections ensure secure installation. It boasts a long mechanical service life and is widely used for iron removal filtration in power plant condensate.
Product characteristics
Continuous polypropylene dilute fiber, the filter element parameters are all arranged by computer, to ensure the stability of the filtration efficiency.
All stainless steel with threaded interface, central pipe and connector.
Full-length level of high pollution interception capacity.
Can provide different sizes for front filters for various purposes.
The investment cost is low, and the pressure loss before and after the condensate concentrate treatment is small.
The system is simple, without acid and alkali consumption and the pollution of recycled acid and base waste, and the waste is easy to handle, which is conducive to environmental protection.
Technical Specification
| Item | DY-70″ Filter Element | DY-70″ Filter Element | 60″ Filter Element |
| Filter Media | Polypropylene Fiber | Polypropylene Fiber | Polypropylene Fiber |
| Center Core Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Bottom Connection | M33 × 1.5 Thread | M33 × 1.5 Thread | G33 × 2 Thread |
| Top Connection | M8 Thread | M10 Thread | M6 Thread |
| Inner Diameter | Φ30 mm | Φ30 mm | Φ30 mm |
| Outer Diameter | Φ50 mm | Φ50 mm | Φ64 mm |
| Filtration Accuracy | 5 μm | 5 μm | 5 μm |
| Filter Element Length | 1778 mm | 1780 mm | 1524 mm |
| Maximum Flow Rate | 8–9 m³/h | 8–9 m³/h | 8.3 m³/h |
| Maximum Differential Pressure | 2.45 kg/cm² | 2.45 kg/cm² | 2.45 kg/cm² |
| Maximum Operating Temperature | 85°C | 85°C | 85°C |
Application Area
densiron filtration of power plant.
RO security filtration, seawater desalination pretreatment.
