Product Overview

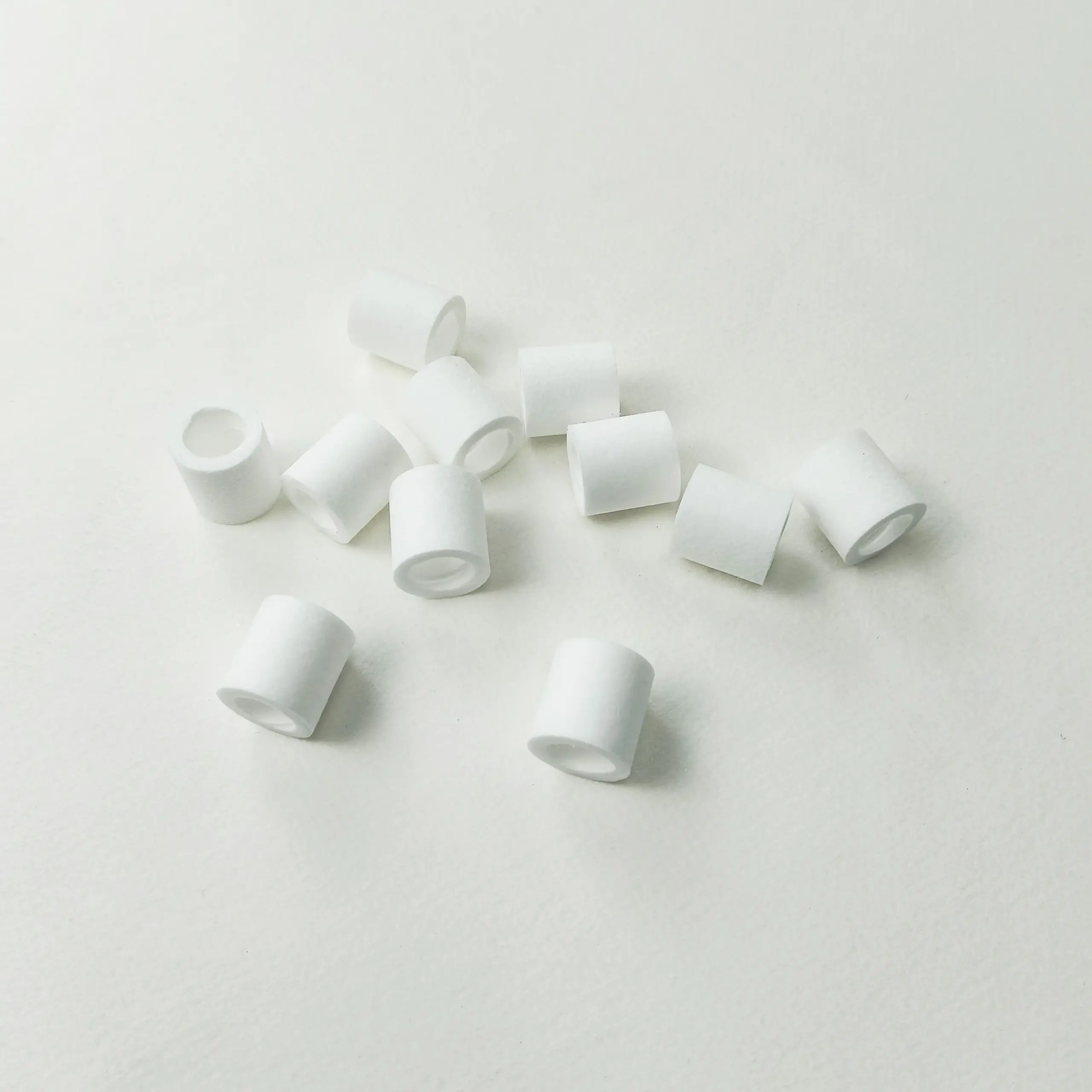

Xinxiang dayu filter equipment co., LTD. produces polypropylene PP melt-blown filter cartridges.They are manufactured by hot melting polypropylene superfine fiber without any chemical adhesives.Fibers bond randomly to form a three-dimensional microporous structure.
Product Features
Progressive density structure, increase the filter element pollution capacity
Surface fiber structure is reinforced, not easy to produce hair removal phenomenon
Made of PP superfiber with high filtration accuracy
100% pure PP, with high corrosion resistance
Increase the filter surface area on the fine grain or groove surface
Blocking efficiency of 98% (filter accuracy of 1 micron)
Technical Specification
| Size of filter element | Outer diameter: 25.5 mm; Inner diameter: 16 mm; Length: 26 mm |
| Filter material | polypropylene (PP) |
| End cover | polypropylene, with a variety of end cover that can be added for applications in different occasions |
| Center bar | polypropylene |
| Gasket / sealing ring | silicone rubber, ethylene propylene rubber, nitrile rubber, fluorine rubber |
| Filter accuracy | 1 μm, 3 μm, 5 μm, 10 μm, 25 μm |
| Maximum operating temperature | 65℃ |
| Maximum pressure difference | 2.0 Bar (21℃) |
Application Area
People’s livelihood living and drinking water filtration, R.O reverse osmosis filtration
Filtering of acid-alkali liquid in industrial process
Filtering of industrial water and electroplating liquid
The image image is filtered with medicine liquid and ink
Sterfree water, ultrasure water before filtration treatment
Filtering of chemical raw materials and organic solvents
