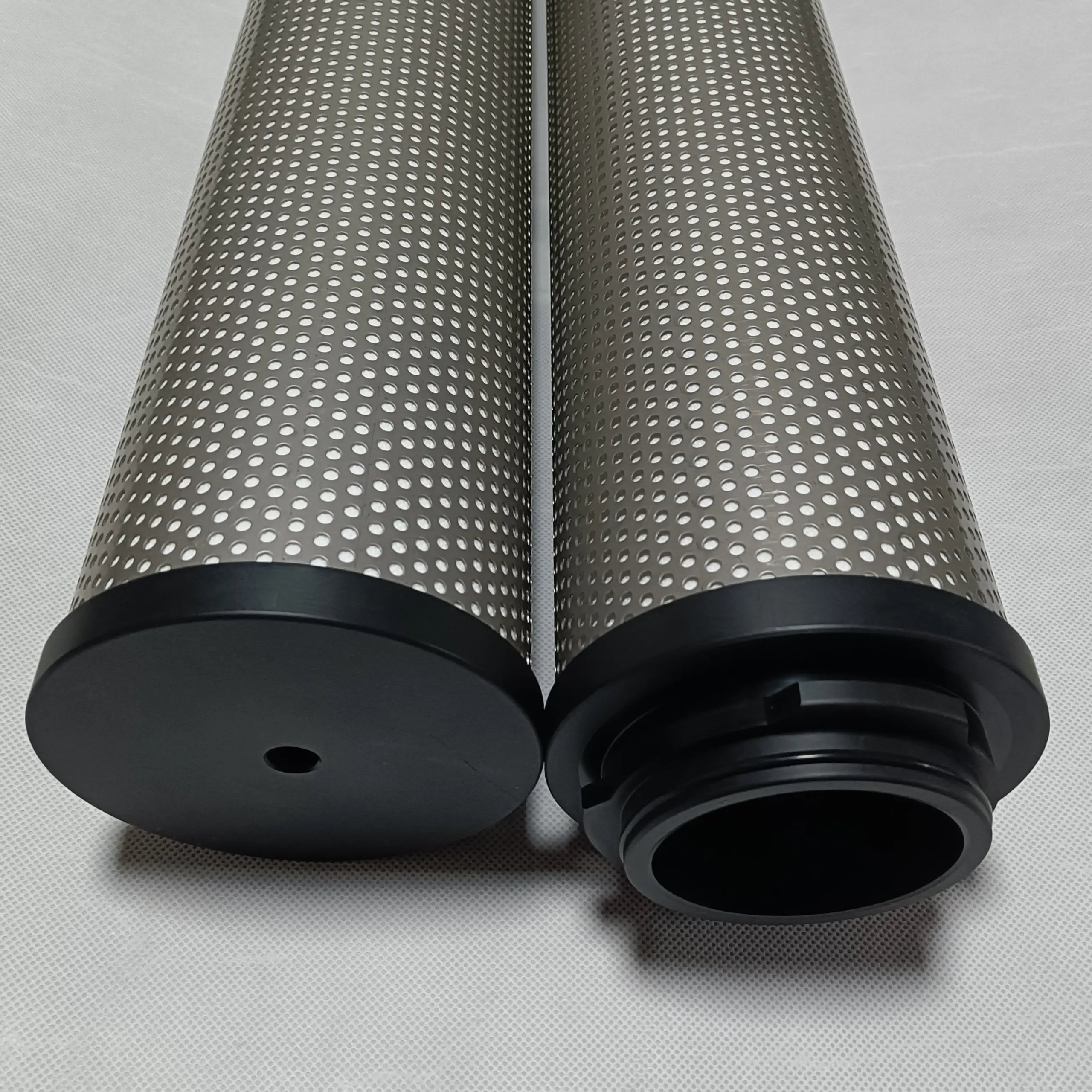

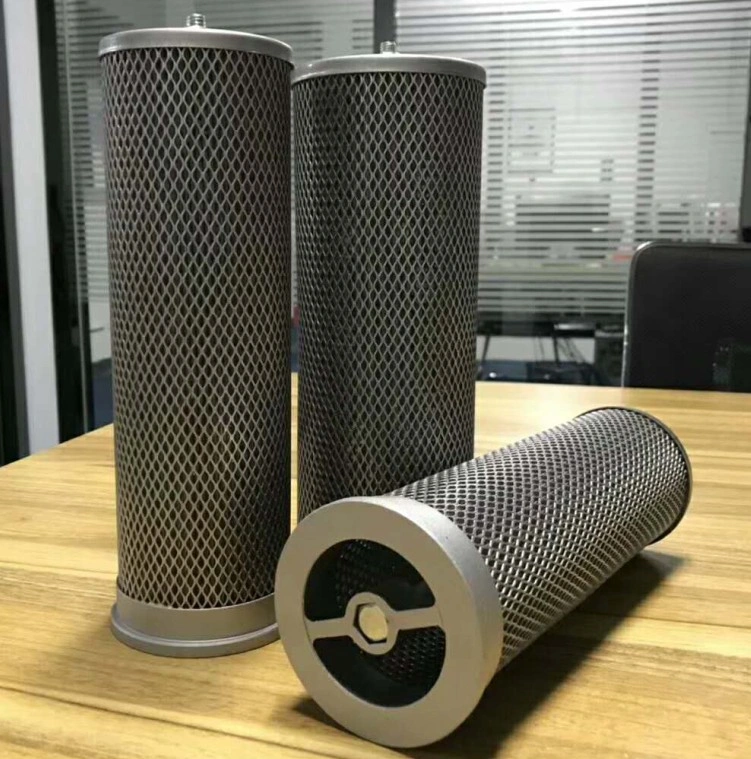

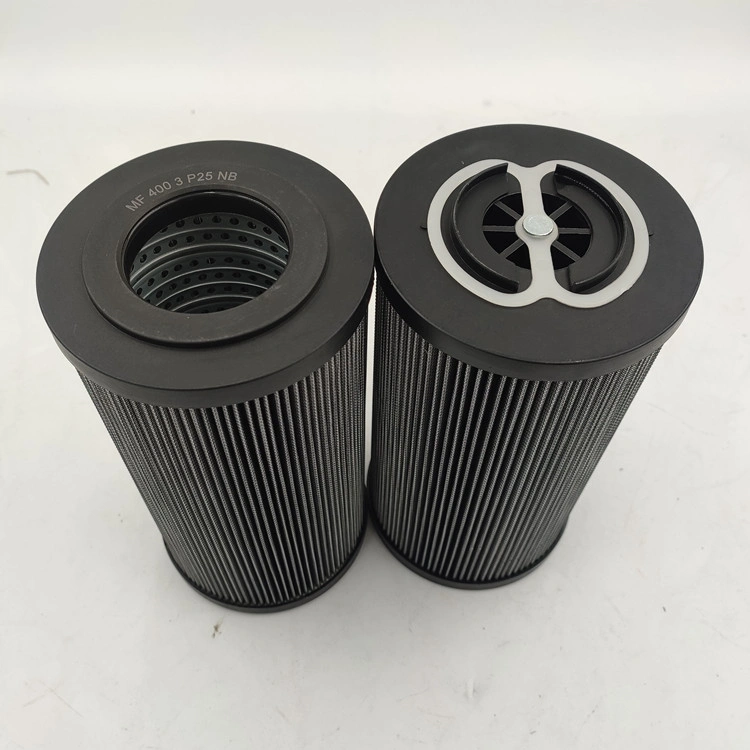

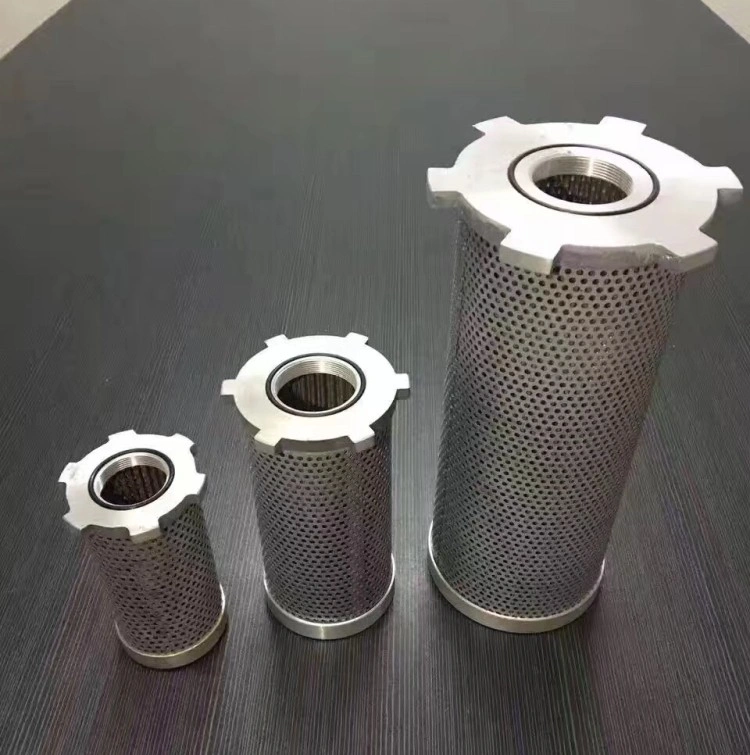

Product Overview
The filter element of the hydraulic oil system is used to filter out solid particles and colloidal substances in the working medium. And filter out solid impurities in various oil systems that are mixed from the outside or generated internally during the operation of the system. It can effectively control the pollution of the working medium and protect the normal operation of machinery and equipment. It is an indispensable part of the pipeline series for conveying media.
Technical Specification
| Filter media | solid particles and colloidal substances in the hydraulic system |
| Filter material | glass fiber filter paper, chemical fiber filter paper, phenolic resin, copper mesh, stainless steel mesh |
| Filter element structure | made of single-layer or multi-layer metal mesh and filter material |
| Structure | mesh type, line gap type, folding filter element, sintered type, etc. |
| Installation location | oil suction, pipeline, oil return, pump self-priming |
| Filtration accuracy | coarse filtration 80 microns-250 microns, ordinary 10 microns-40 microns, Fine oil filter 1 micron-5 micron |
| Pressure drop | less than 0.35MPa |
Application Area
Used for the filtration of hydraulic systems of steel rolling mills and continuous casters and the filtration of various lubrication equipment；
Separation and recovery of products and intermediate products in petrochemical, refining, and chemical production processes；
Liquid purification, purification of magnetic tapes, optical discs and photographic films in manufacturing;
Oilfield injection well water and natural gas in addition to particle filtration；
Purification and filtration of oil products in the drawing process of polyester melts in the textile industry；
Machining equipment: lubrication systems and compressed air purification for papermaking machinery, mining machinery, injection molding machines and large precision machinery；
Filtration of various hydraulic oils in automobile engines, internal combustion engines, ships, and heavy-duty machinery；
Oil purification and filtration of lubrication systems, speed control systems, and bypass control systems for thermal power and nuclear electric turbines and boilers.
