Product Overview

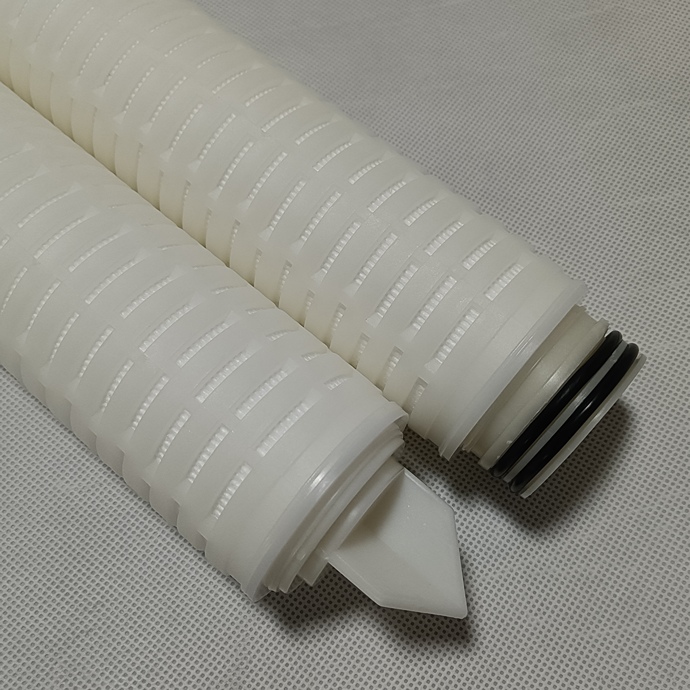

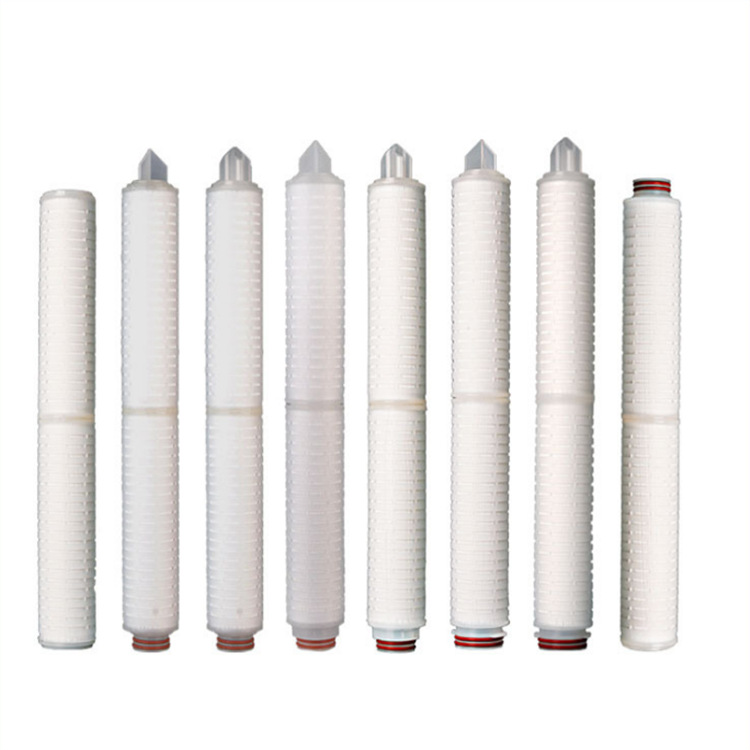

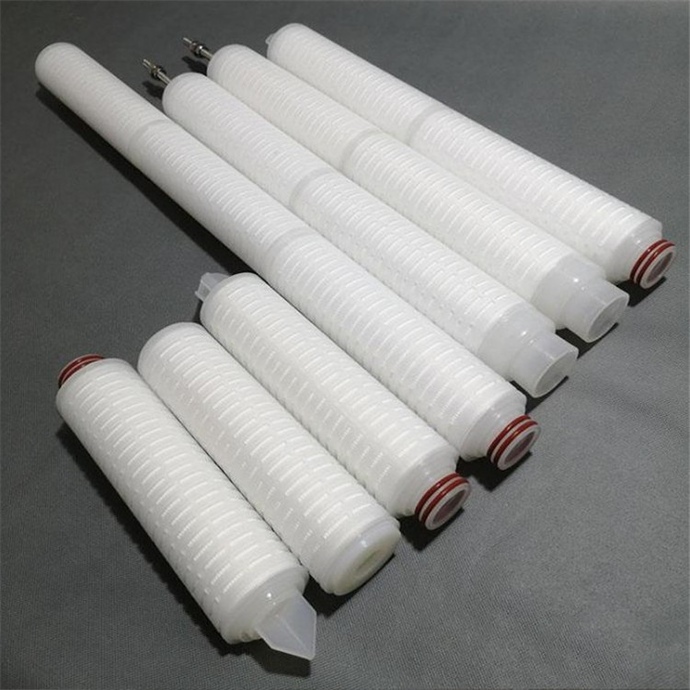

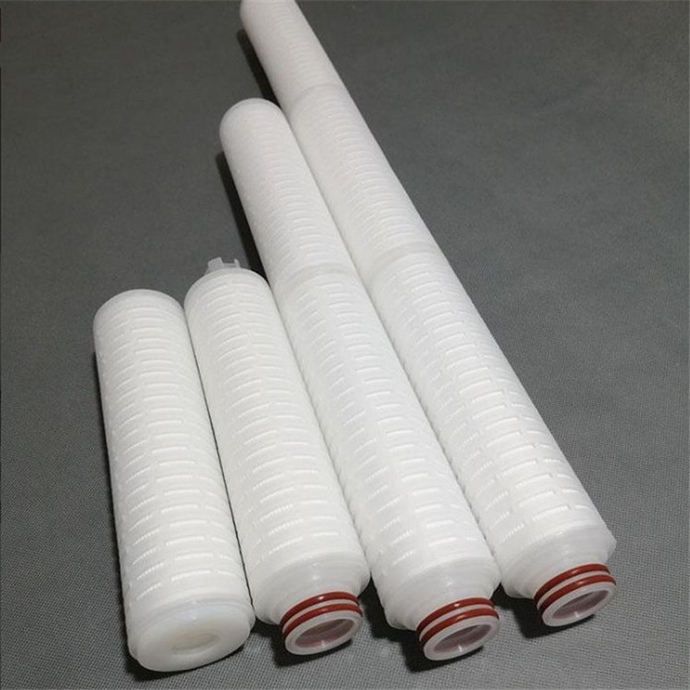

The microhole folding film filter element is formed of superfiber film and non-woven cloth or wire mesh fold. The filter element shell, center rod and end cover are processed by hot melt welding, without leakage and pollution-free.According on the operating conditions and filter media, there are a variety of fiber membranes: polypropylene (PP), polyether sulfone (PES), polytetrafluoride (PTFE), nylon 6 (N6), polyvinyrene dene fluoride (PVDF).
Product characteristics
Hydrophilic filter membrane, with uniform pore diameter distribution, high porosity, high flow rate and particle retention rate
With good temperature resistance and acid-base resistance performance
Technical Specification
| Filter Accuracy | 0.1 μm, 0.22 μm, 0.45 μm, 1 μm, 5 μm, 10 μm, 20 μm, 30 μm, 60 μm |
| Sealing Material | Silicone Rubber, Nitrile Rubber, EPDM (Ethylene Propylene Diene Monomer), Fluorine Rubber (FKM) |
| Effective Filter Area | 0.6 m² / 10″ |
| Filter Element Diameter | Outer Diameter: 69 mm; Inner Diameter: 28 mm |
| Filter Element Length | 10″, 20″, 30″, 40″ |
| Maximum Operating Temperature | 80°C, 0.28 MPa |
| Maximum Forward Differential Pressure | 0.42 MPa |
| Maximum Reverse Differential Pressure | 0.28 MPa |
| Sterilization Conditions | 121°C for 30 minutes |
| Connection Type | Flat End, 222 Connector, 226 Connector, Threaded Connector, Custom Connections Available |
Application Area
Electrons
prefiltration of reverse osmosis water system, prefiltration of deionized water system, pre-filtration of chemical filtration and pure water filtration.
Medicine
pharmaceutical, biological and plasma product filtration, compressed air and gas filtration.
Food and beverage industry
mineral water, beverage, fruit juice, wine filtration.
Chemistry
organic solvent, ink filtration.
Oil
oilfield water injection filtration.
Other
Filtering of plating solution, metal cutting solution, photoresist, and magnetic media.
