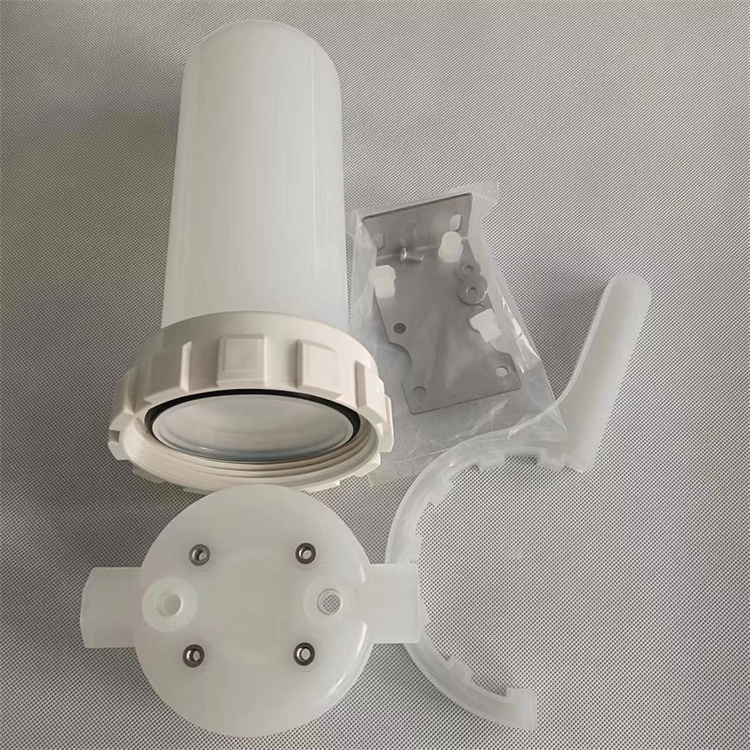

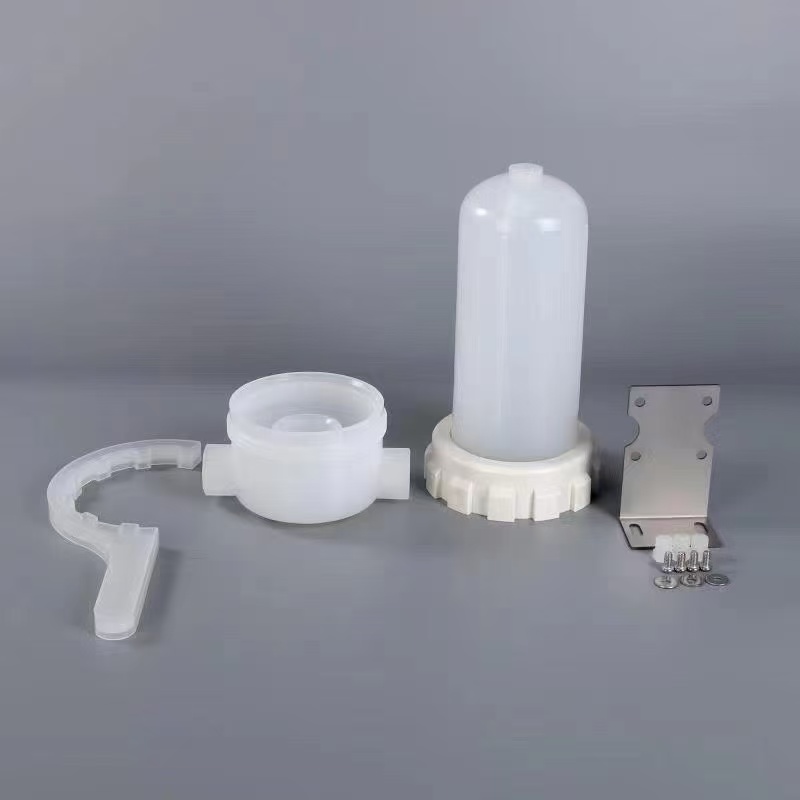

Product Overview
Made of pure PP polypropylene, free of talc, fillers, colorants, plasticizers, and lubricants, suitable for high-purity water filtration applications

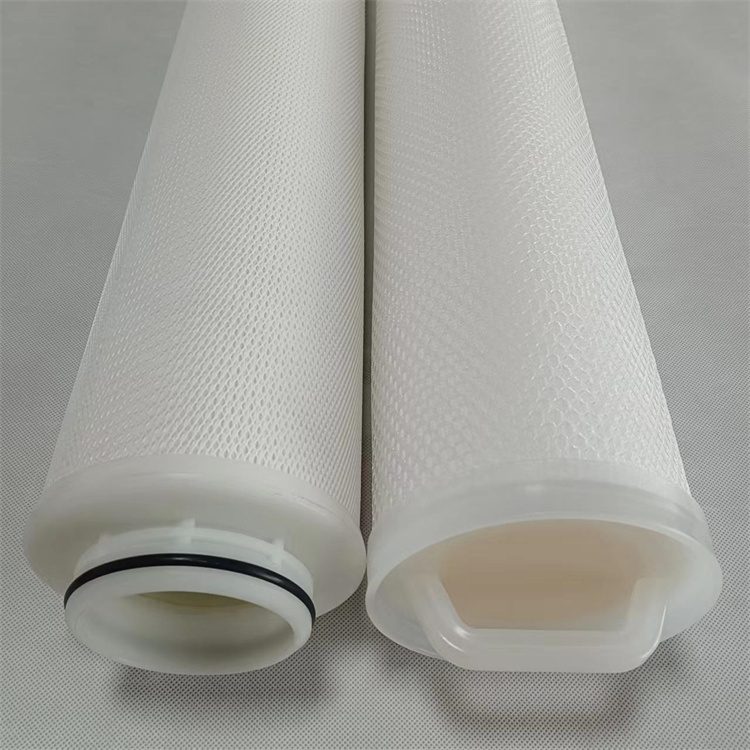

Compatible with 10″ and 20″ interface filter cartridges
Compatible with 222 ring-type filter cartridges, suitable for high-precision filtration processes
Stainless steel mounting brackets are available
Product Features
An economical alternative to fluoropolymer filter cartridges
All materials are FDA-listed for food and beverage contact
Technical Specification
| Drain outlet | 1/4″ <13.7mm> NPT |
| Inlet/Outlet | 10: 3/4″<26.7mm>FNPT 20: 3/4″<26.7mm>FNPT |
| Exhaust port/instrument port | 1/4″<13.7mm> NPT |
| Operating Temperature | ≤ 85°C |
| Maximum working pressure | 125psig<8.6bar>@77F<25℃> |
Application Fields
Pure water filtration, electronic-grade chemicals
Cleaning solution, etching solution
Developer, alcohols, acids
General chemicals, food and beverage
