Product Overview

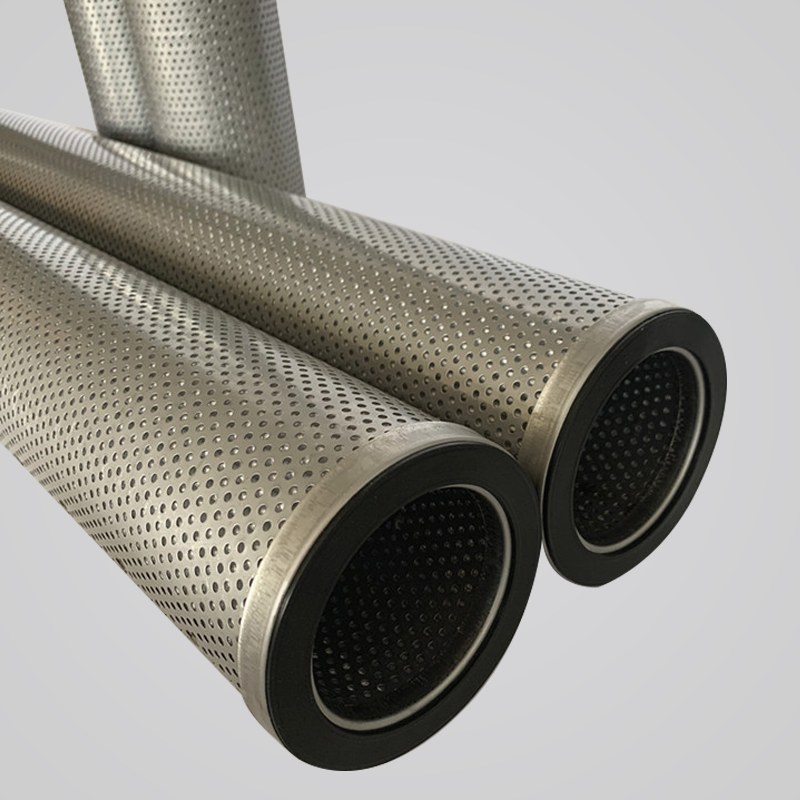

Coalescence separate filter element (alias: Raw Gas filter element, natural gas filter element, gas-liquid coalescing filter element, raw gas filter element, gas filter element, methane filter element, gas filter element, hydrogen filter element, process gas filter element, gas filter element, methane filter element) is suitable for filtering and purifying raw gas in natural gas purification plant and separating solid particles in gas, mechanical impurities, oil, heavy hydrocarbons, droplets and other impurities to ensure the cleanliness of downstream gas, can also be used for other gas filtration separation.
Working Range
Product Features
Technical Specification
| Initial Differential Pressure | < 0.05 MPa |
| Dehydration Capacity | Water content up to 0.05% |
| Working Temperature | -40°C to 150°C |
| Filter Material | Glass Fiber, Polyester Fiber, Acetate Fiber, etc. |
| Contaminant Holding Capacity | 1.3 g/(L/min) |
| Filtered Fuel Cleanliness | A. Free Water Content: < 15 ppm B. Solid Impurity Content: < 0.26 mg/L C. Fiber Content: < 10/L |
| Maximum Differential Pressure | 0.1 MPa |
| Filter Element Structural Strength | > 0.7 MPa |
Coalescence separate filter element Model specification
| model | external diameter | Total length | internal diameter | install | |||
| MM | IN | MM | IN | MM | IN | ||
| DY-φ100×500 | 100 | 4 | 500 | 20 | 52 | 2 | Flat head |
| DY-φ100×600 | 100 | 4 | 600 | 24 | 52 | 2 | Flat head |
| DY-φ114×914 | 114 | 4（1/2） | 914 | 36 | 80 | 3 | Flat head |
| DY-φ114×1000 | 114 | 4（1/2） | 1000 | 40 | 80 | 3 | Flat head |
| DY-φ114×1250 | 114 | 4（1/2） | 1250 | 49 | 80 | 3 | Flat head |
| DY-φ150×500 | 150 | 6 | 500 | 20 | 89 | 3（1/2） | Flat head |
| DY-φ150×710 | 150 | 6 | 710 | 28 | 89 | 3（1/2） | Flat head |
| DY-φ150×840 | 150 | 6 | 840 | 33 | 89 | 3（1/2） | Flat head |
| DY-φ150×915 | 150 | 6 | 915 | 36 | 89 | 3（1/2） | Flat head |
| DY-150×1120 | 150 | 6 | 1120 | 44 | 89 | 3（1/2） | Flat head |
| DY-φ150×710L | 150 | 6 | 710 | 28 | 89 | 3（1/2） | Thread head |
| DY-φ150×840L | 150 | 6 | 840 | 33 | 89 | 3（1/2） | Thread head |
| DYφ150×915L | 150 | 6 | 915 | 36 | 89 | 3（1/2） | Thread head |
| DY-φ150×1120L | 150 | 6 | 1120 | 44 | 89 | 3（1/2） | Thread head |
Note: other specifications and sizes can be customized according to the situation
Application Area
Mainly used in natural gas purification plant, liquefied petroleum gas plant, chemical plant, iron and steel metallurgy plant, natural gas long-distance pipeline, power plant, coking plant, coal chemical industry, petrochemical industry, steel metallurgy plant, medicine, light industry, machinery, environmental protection and other occasions of gas purification.
