Product Overview

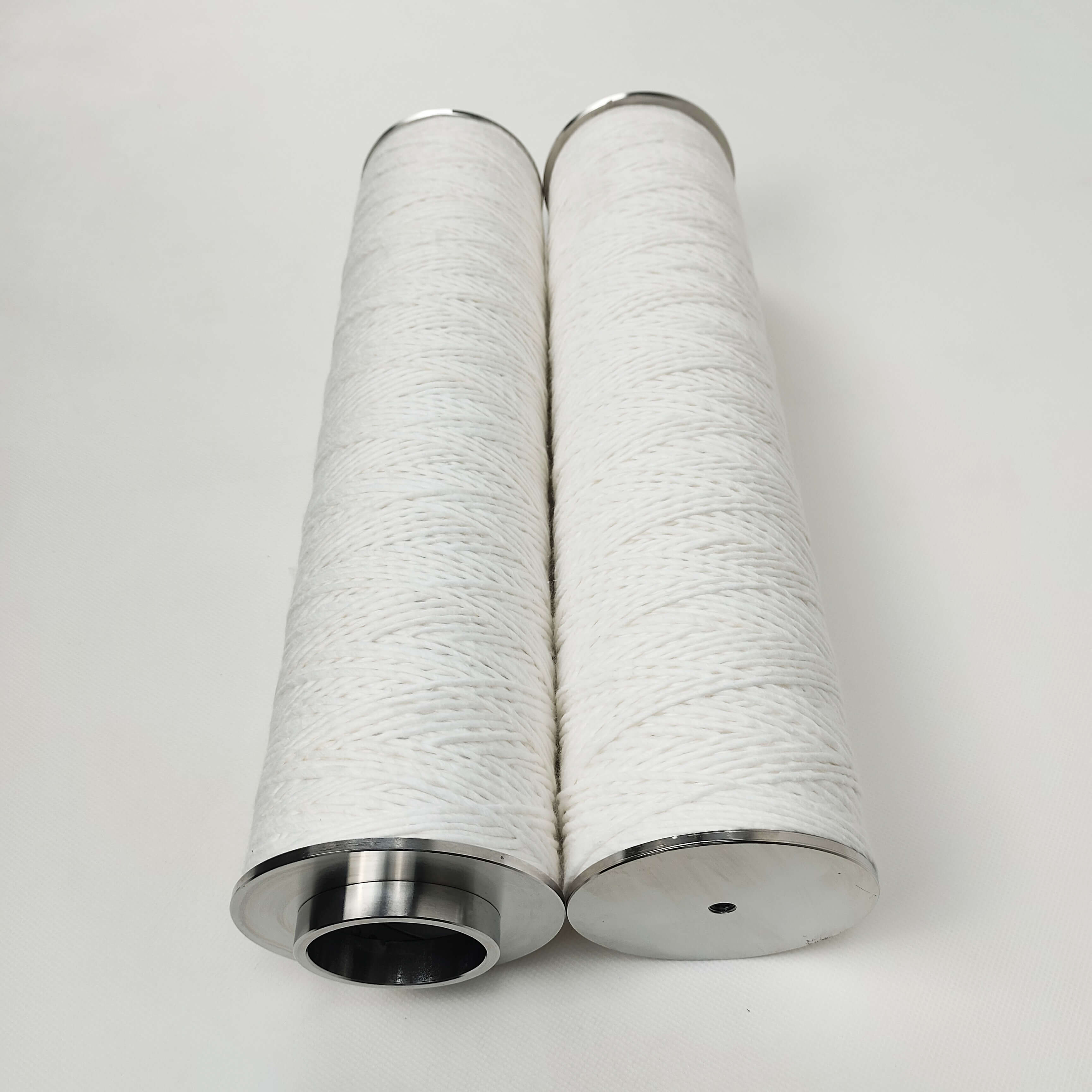

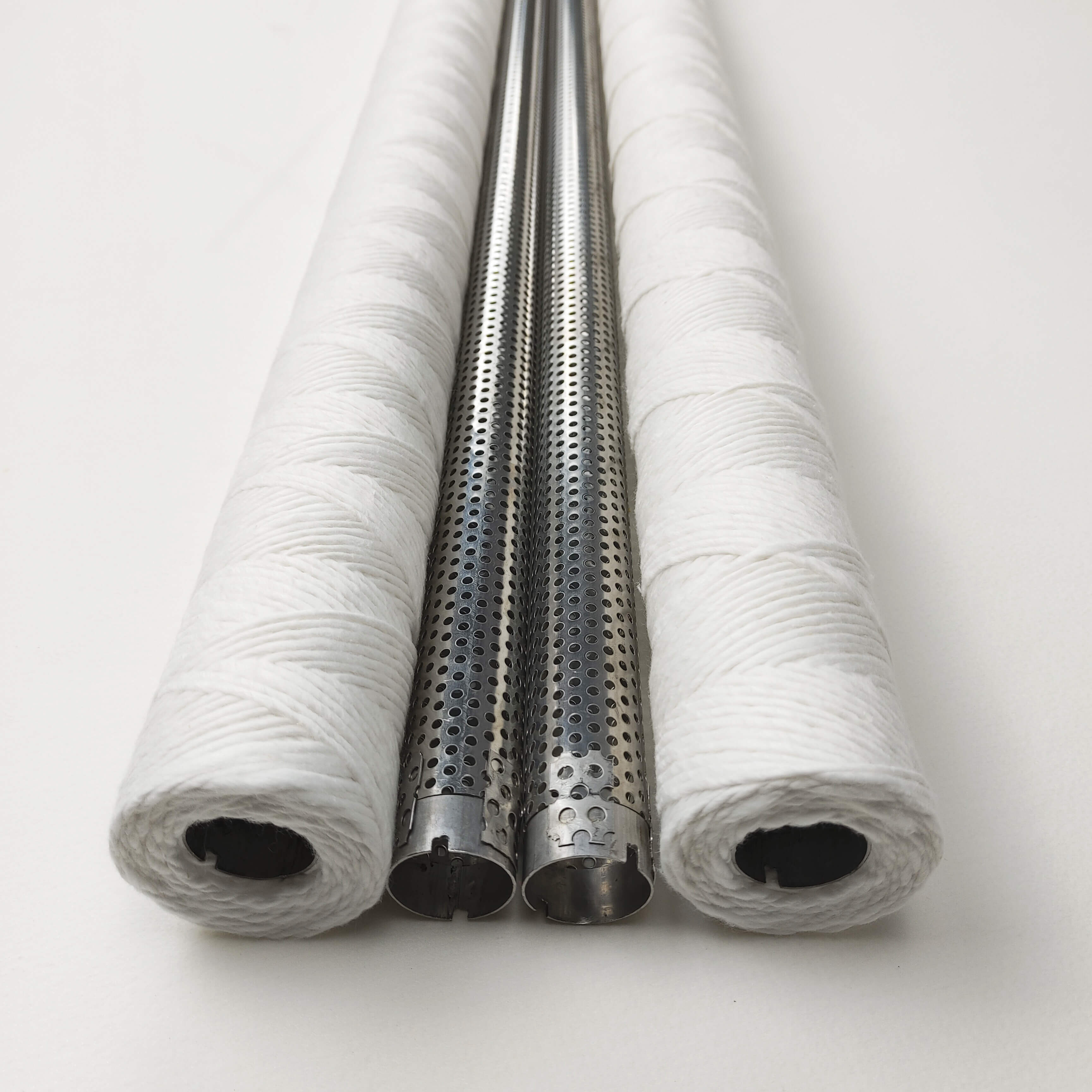

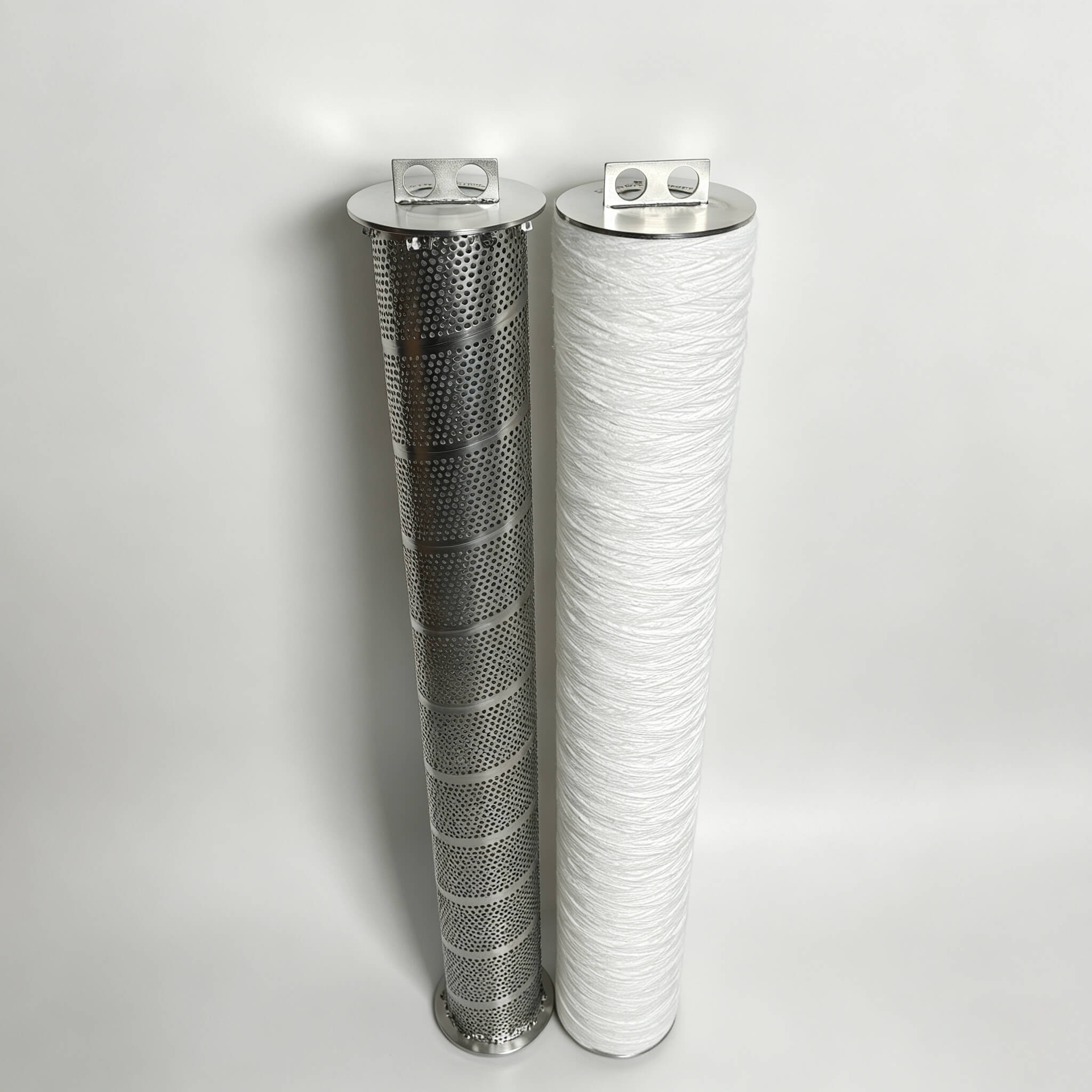

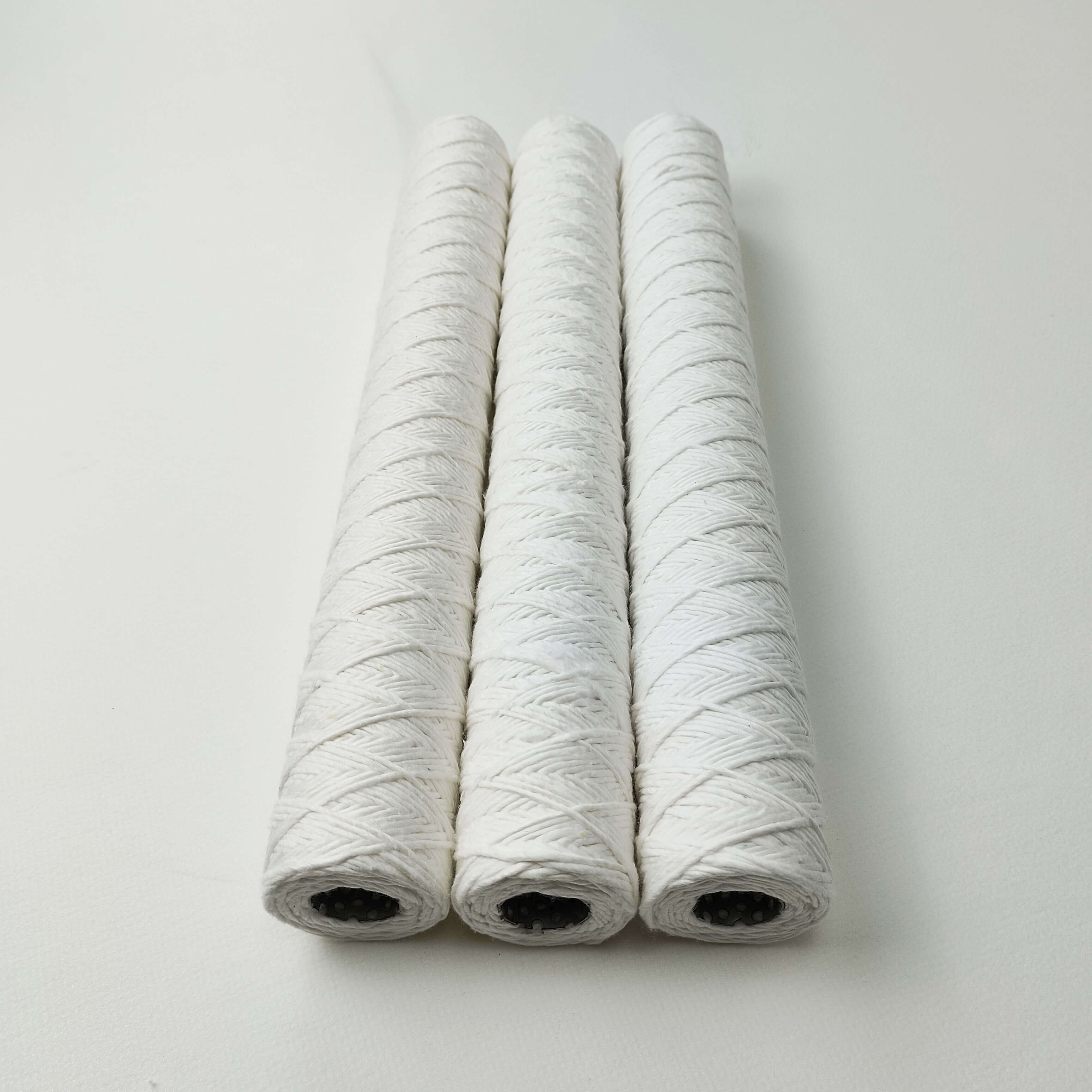

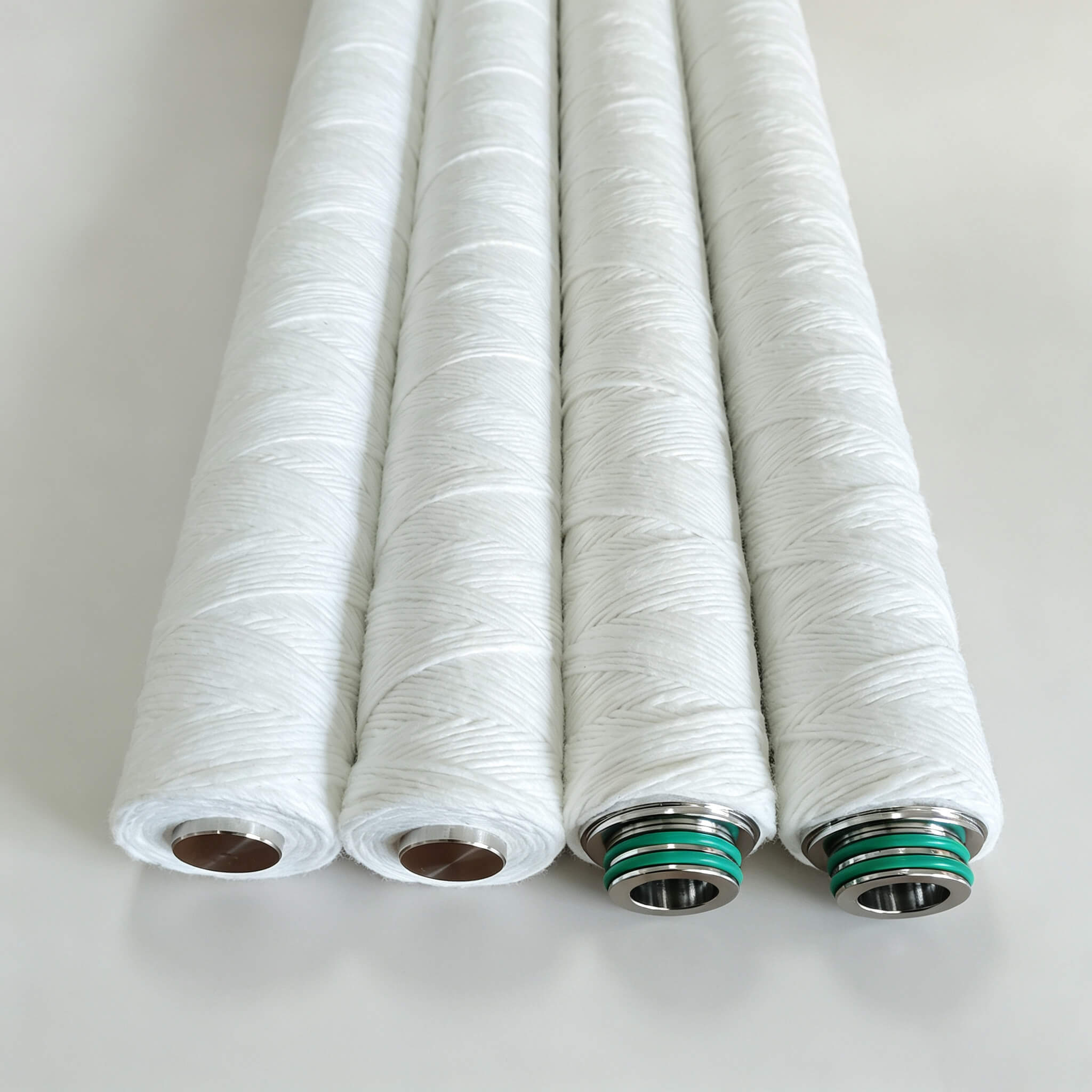

Polypropylene line winding filter element is composed of high strength PP or stainless steel internal skeleton, stronger pressure resistant defat cotton or glass fiber materials, according to the computer specific process, closely wrapped on the skeleton, the formation of sparse and dense honeycomb structure, has very excellent filtering characteristics, can effectively remove fluid suspended objects, rust, particles and other impurities.Polypropylene line winding filter element can be used in acid-alkali, chemical solutions and other non-organic solutions; can be used in organic solvents, water, oil, alkaline solutions, drinks, medicine and other industries.
Product features
Can withstand a high filtration pressure.
Good chemical compatibility.
The filter element can be made of various materials to meet the needs of various liquid filtration.
Filtering aperture inside and outside the sparse structure, with a good deep filtration effect.
Can effectively remove the liquid suspended objects, particles, small pressure reduction, large pollution amount.
Technical Specification
| Filter Element Size | Outer Diameter: 63 mm, 115 mmInner Diameter: 28 mm, 30 mm Length: 10″, 20″, 30″, 40″ |
| Filter Material | Polypropylene (PP), Degreased Cotton, Fiberglass |
| Center Core Material | Polypropylene (PP), Stainless Steel |
| Filtration Accuracy | 1 μm, 5 μm, 10 μm, 20 μm, 30 μm, 50 μm, 75 μm, 100 μm |
Application Area
General drinking water pre-filtration treatment.
Filtering of acid-alkali liquid in the chemical process.
Filtering of chemical raw materials and organic solvents.
R.O Inverse osmosis front-filtration treatment.
Filtering of syrup, chocolate.
Filtering of the images with medicine liquid and ink.
Pre-filtration treatment of sterile water and ultra-pure water.
Industrial water, the filtration of electroplating liquid.
