Product Overview

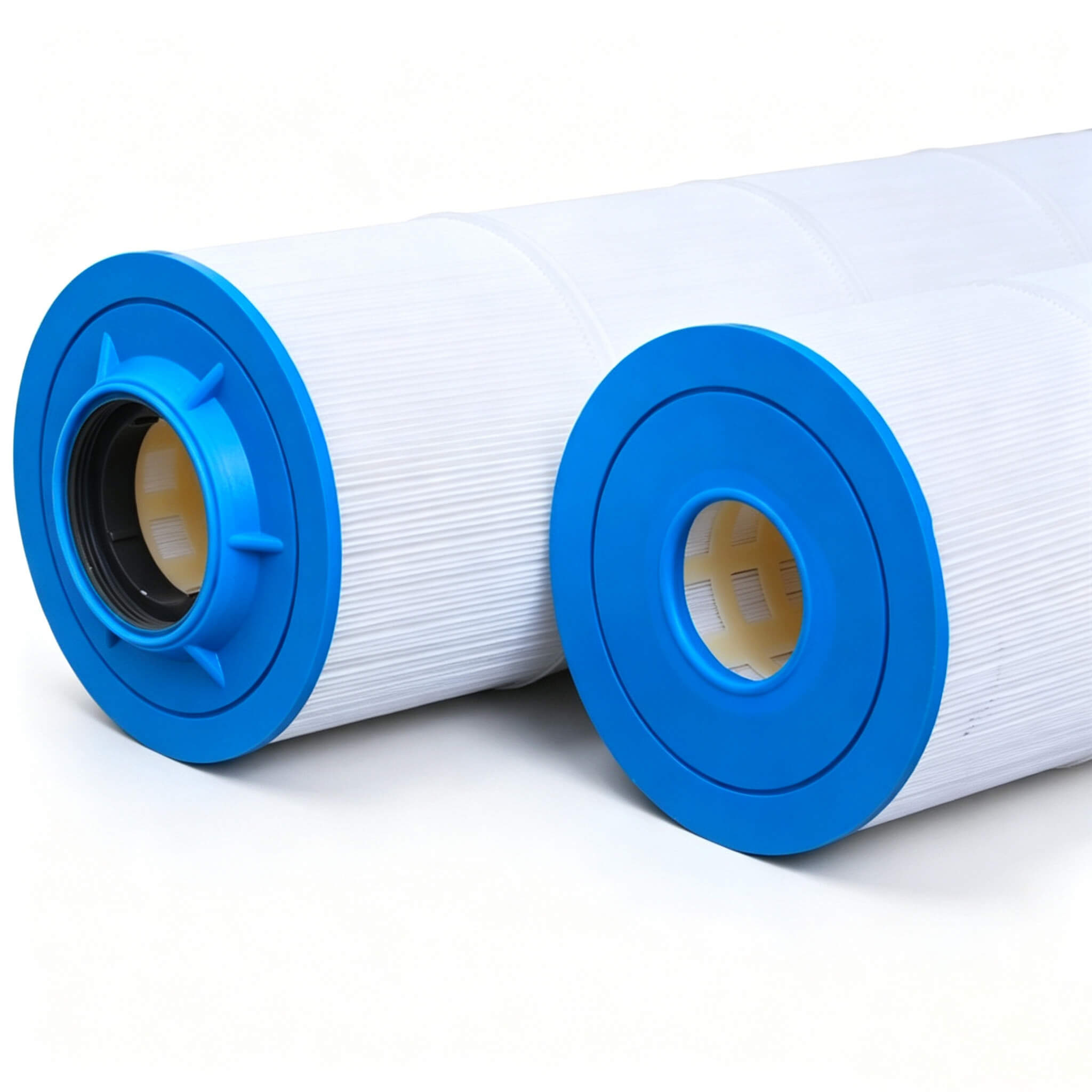

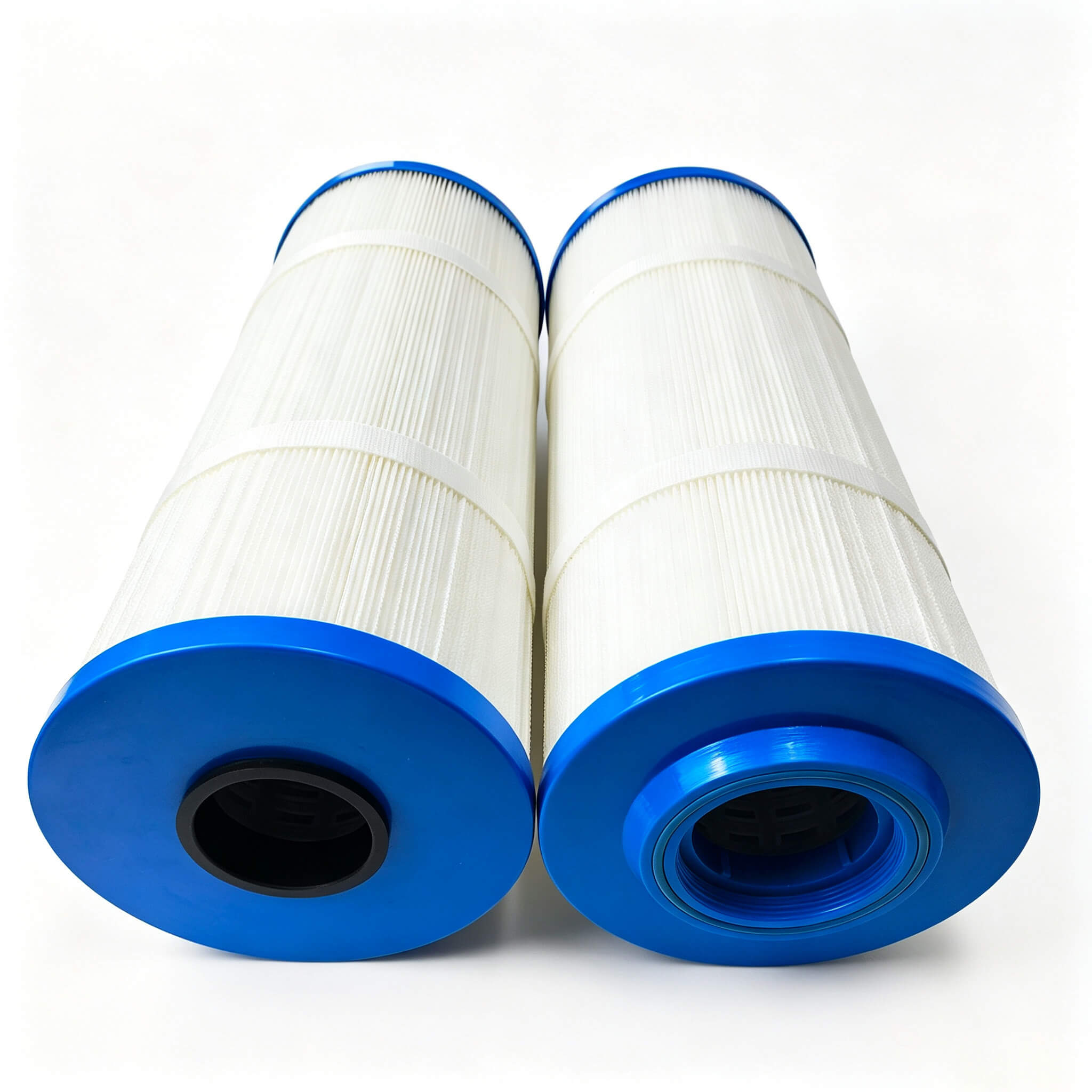

HTC-170 folding large flow filter element adopts polyester fiber cloth filter material, with durable performance, filter medium, center rod and end cover as the overall adhesive together, to ensure better end cover sealing. Due to its folding design, and other filter elements relatively provide larger filter area, longer filter life, reduce the number of filter element updates and reduce the filter cost.
Product characteristics
Large amount of pollution, low pressure difference.
Multi-fold design to increase the filter area, reduce the number of filter element replacement.
Technical Specification
| Filter Element Size | Outer Diameter: 7-3/4″ (197 mm) Length: 9-5/8″ (245 mm), 19-1/2″ (495 mm), 30-3/4″ (781 mm) |
| Filter Material | Polyester Fiber |
| End Cap Material | Polyurethane (PU) |
| Filtration Accuracy | 1 μm, 5 μm, 10 μm, 20 μm, 50 μm |
| Maximum Operating Temperature | 60°C |
| Maximum Operating Pressure | 40 PSI |
Application Area
RO security filtration, seawater desalination pretreatment.
Filtration of the condensate water of the power plant.
Biopharmaceutical industry API, solvent, water filtration.
Paint, ink, optical disc, magnetic media, petrochemical, refining.
Microelectronics, film, fiber, resins.
