Product Overview

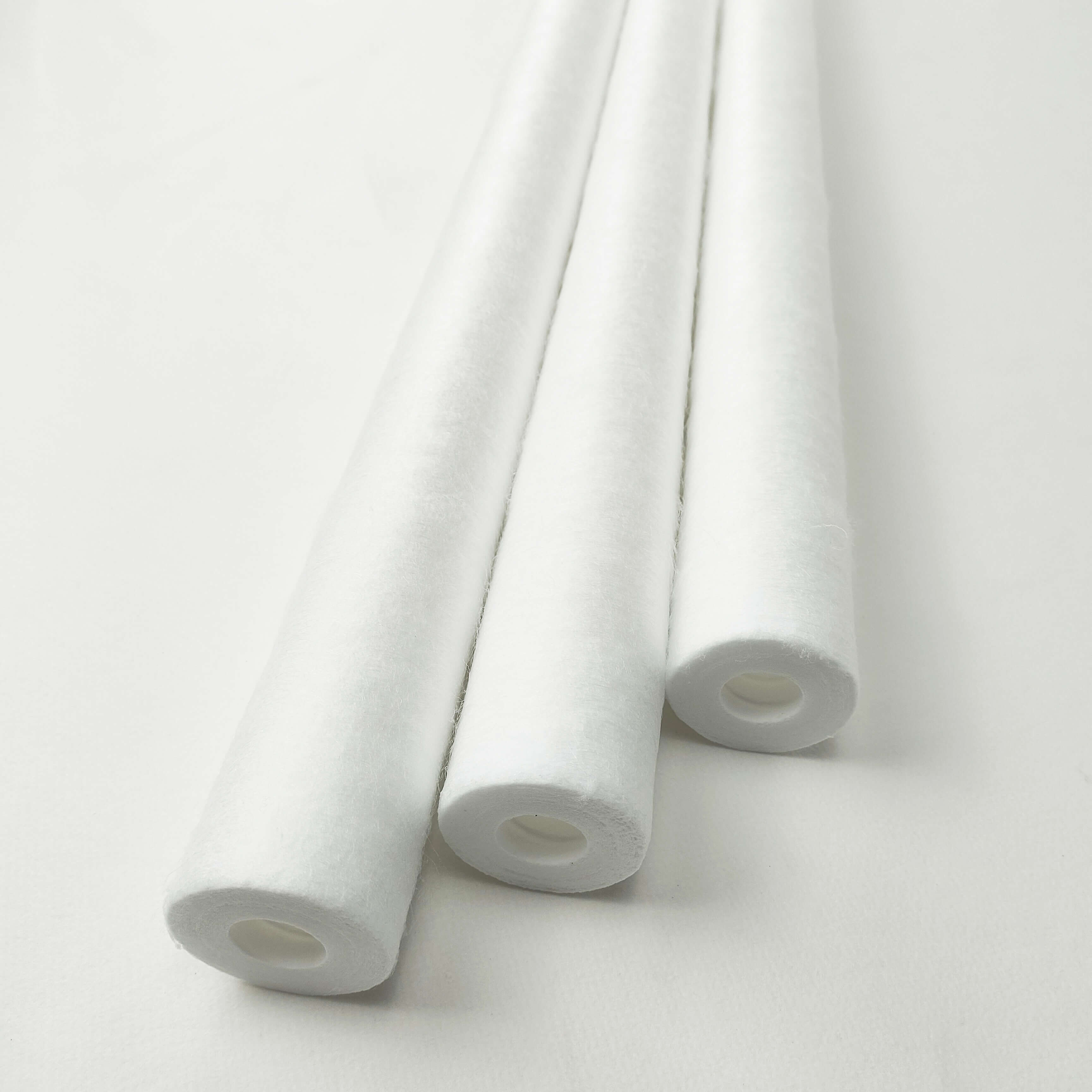

Xinxiang dayu filter equipment co., LTD., polypropylene PP melt injection element made of polypropylene superfiber hot melt, without using any chemical adhesive, fiber random adhesion form three-dimensional micropore structure, cloth surface, deep, coarse filter, no fiber shedding, because fiber and density in filter diameter accuracy, the pressure difference is small, external and dense gradient pore diameter deep filtration structure can effectively remove floating liquid, particles, rust and other impurities, high filtration effect, long service life.At present, it is the most widely used in various industries, and also the most cost-effective water treatment filter element.
Product Features
Progressive density structure, increase the filter element pollution capacity
Surface fiber structure is reinforced, not easy to produce hair removal phenomenon
Made of PP superfiber with high filtration accuracy
100% pure PP, with high corrosion resistance
Increase the filter surface area on the fine grain or groove surface
Blocking efficiency of 98% (filter accuracy of 1 micron)
Technical Specification
| Size of filter element | outer diameter: 63mm, 115mminner diameter: 28mm, 30mmlength: 10″, 20″, 30″, 40″ |
| Filter material | polypropylene (PP) |
| End cover | polypropylene, with a variety of end cover that can be added for applications in different occasions |
| Center bar | polypropylene |
| Gasket / sealing ring | silicone rubber, ethylene propylene rubber, nitrile rubber, fluorine rubber |
| Filter accuracy | 1 μm, 3 μm, 5 μm, 10 μm, 25 μm |
| Maximum operating temperature | 65℃ |
| Maximum pressure difference | 2.0 Bar (21℃) |
Application Area
People’s livelihood living and drinking water filtration, R.O reverse osmosis filtration
Filtering of acid-alkali liquid in industrial process
Filtering of industrial water and electroplating liquid
The image image is filtered with medicine liquid and ink
Sterfree water, ultrasure water before filtration treatment
Filtering of chemical raw materials and organic solvents
