Product Overview

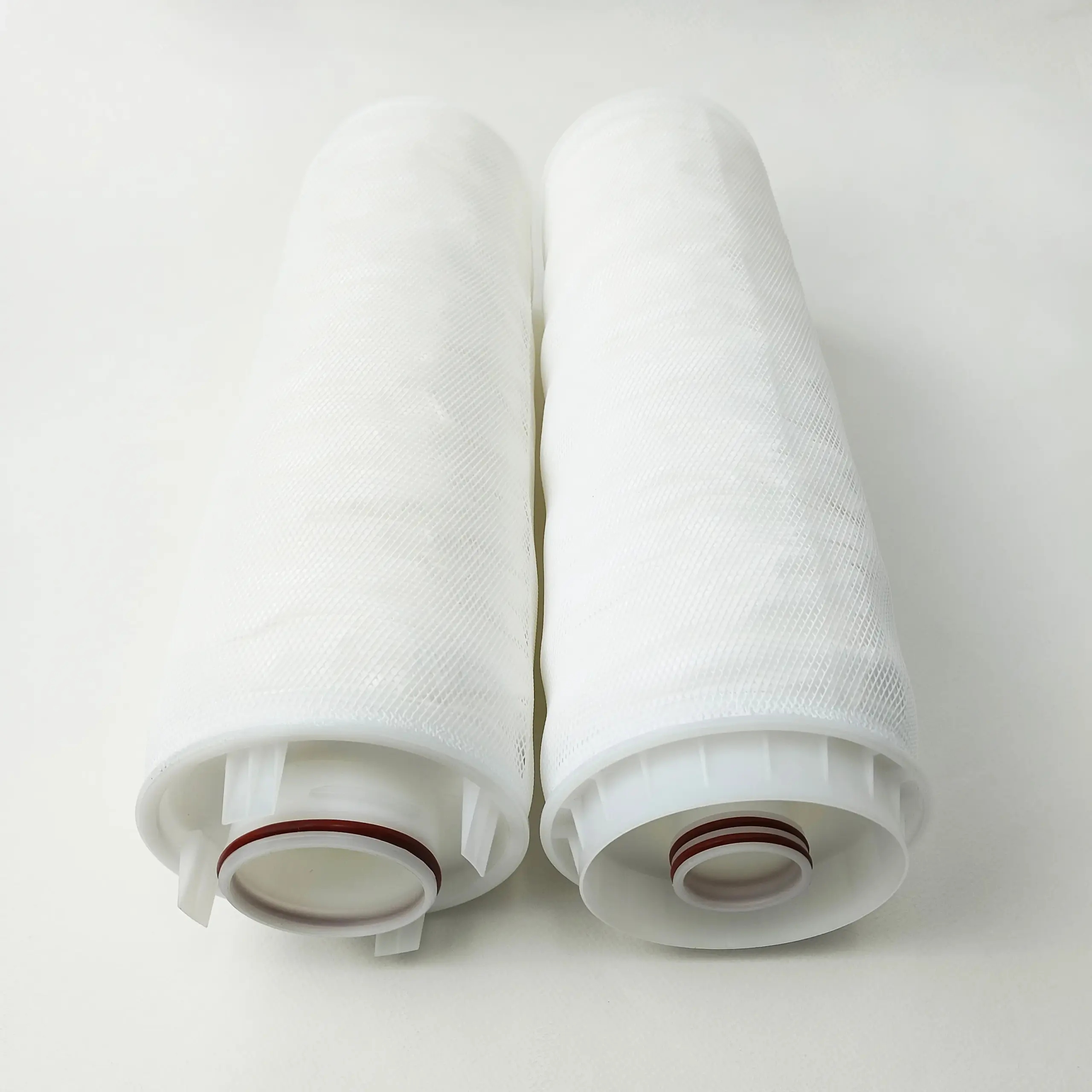

3M replaces the large flow filter element with imported polypropylene fiber film, which adopts special horizontal discount technology, so that a single filter element has a large filtration area. Compared with the traditional longitudinal folding filter element, it effectively increases the amount of filter element and reduces the production and operation cost.
Product characteristics
Large filter area, effectively prolong the service life.
The number of required replacement filter elements is greatly reduced, thus saving labor costs.
The sealing interface is designed to reduce the risk of bypass flow and thus improve the filtering efficiency.
Extensive chemical applications can be applied in multiple domains.
Technical Specification
| Filter Element Size | Outer Diameter: 6.5″ (165 mm) Length: 40″ (1040 mm) |
| Filter Material | Polypropylene (PP) |
| Support / Guide Layer | Polypropylene (PP) |
| End Cap Material | Glass Fiber Reinforced Polypropylene |
| Seal Ring Material | EPDM (Ethylene Propylene Rubber), Nitrile Rubber (NBR), Iron Fluorlon-Coated Fluorine Rubber |
| Filtration Accuracy | 1 μm, 3 μm, 5 μm, 10 μm, 20 μm, 50 μm, 70 μm |
| Maximum Operating Temperature | 80°C |
| Maximum Differential Pressure | 3.4 bar @ 82°C |
| Recommended Replacement Differential Pressure | 2.4 bar @ 20°C |
| Recommended Maximum Water Flow Rate | 1,200 LPM |
Application Area
Large reverse osmosis pre-processing filtration.
Electronic industry high-pure water front filtration.
Petrochemical industry amine liquid filtration, oil field back to water injection filtration.
Power, coal chemical industry security filtration, seawater desalination pretreatment.
